Add the CLI to your pipeline

Automate deployments to No_Ops in GitHub actions using the No_Ops CLI.

Application configuration file​

The GitHub Actions workflow requires a configuration file in your repository to define the deployment process.

FAQ

Why do I need to create a configuration file and store it in my repository if I've already defined resources in No_Ops?

  • You can overwrite any configuration defined for a compute resource using the configuration file in your repository
  • This allows you to:
    • Use environment variables in your configuration file (eg. image URI, database URL, etc.)
    • Define different configurations for different environments
    • Use the same configuration file across multiple repositories
  1. Create a noops.yaml file in the root directory of your repository.
  2. We've provided a template below, but if you want to generate a more specific configuration file, you can use the ops compute get command.
Sample noops.yaml file to be stored in the root directory of your repository
code: graphql-api
class: compute
name: GraphQL API

resources:
  - code: db
    type: database
    data:
      cluster: database

  - code: api
    type: container
    data:
       # Environment variables passed from the GitHub Actions workflow
      image: ${Repositories_Website_RepositoryUri}:${Image_Tag}

      # Configuration options
      port: 8080
      desired: 2
      cpu: 256
      memory: 512

      # Environment variables
      env_vars:
        PORT: :8080
        SRVADDR: :8080
        METRICSADDR: :8081
        HEALTHADDR: :8082
        DATA_TYPE: pg
        DATA_PG_HOST: "{{this:db:host}}" # `this` refers to the `db` resource defined above
        DATA_PG_PORT: "{{this:db:port}}"
        DATA_PG_DATABASE: "{{this:db:name}}"
        DATA_PG_SSLMODE: require
        UGLYDOMAIN_DOMAIN: dev-cc.net

      # Secrets stored in secrets manager
      secret:
        DATA_PG_USERNAME: "{{this:db:userpass:username}}"
        DATA_PG_PASSWORD: "{{this:db:userpass:password}}"

    # You can override specific values for different environments
    overrides:
      environment:
        prod:
          env_vars:
            UGLYDOMAIN_DOMAIN: n-cc.net

# Inbound and outbound traffic rules
access:
  inbound: []
  outbound: []

ops compute get [compute-code] --format=yaml
  1. Commit this to your repository.

Create an API key​

Create a No_Ops API key and store it as a secret in GitHub actions.

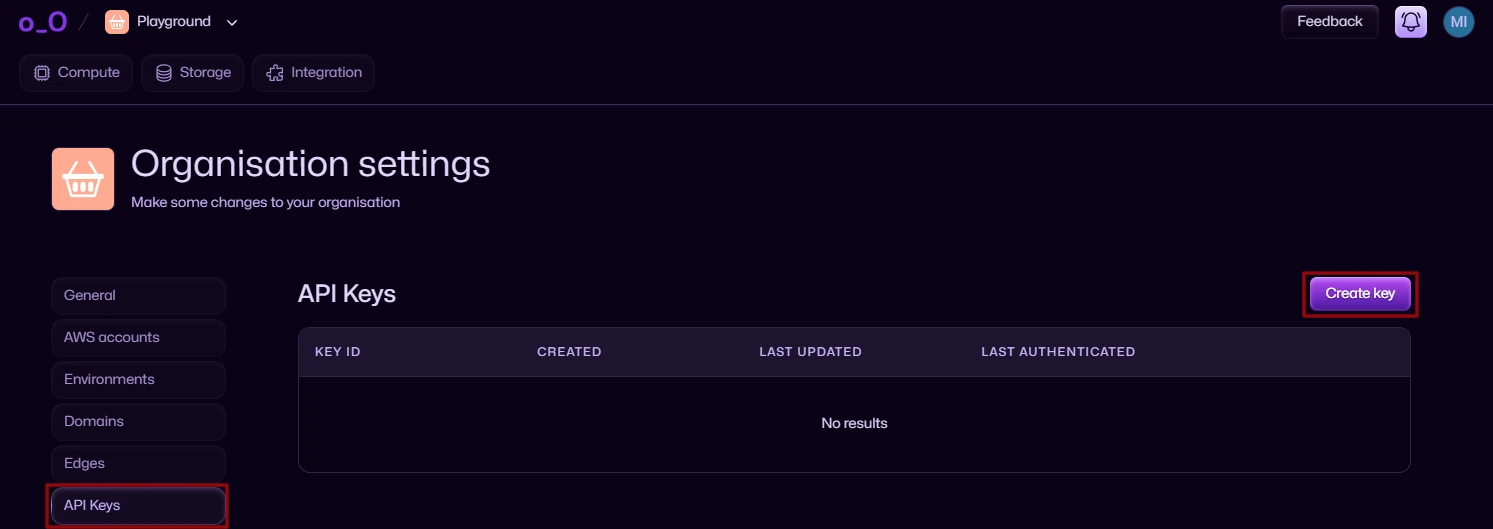

  1. On the top left of the No_Ops portal, click on the arrow next to your organisation's name, and select Settings.

  2. Click on API Keys in the left-hand menu, then select Create on the right.

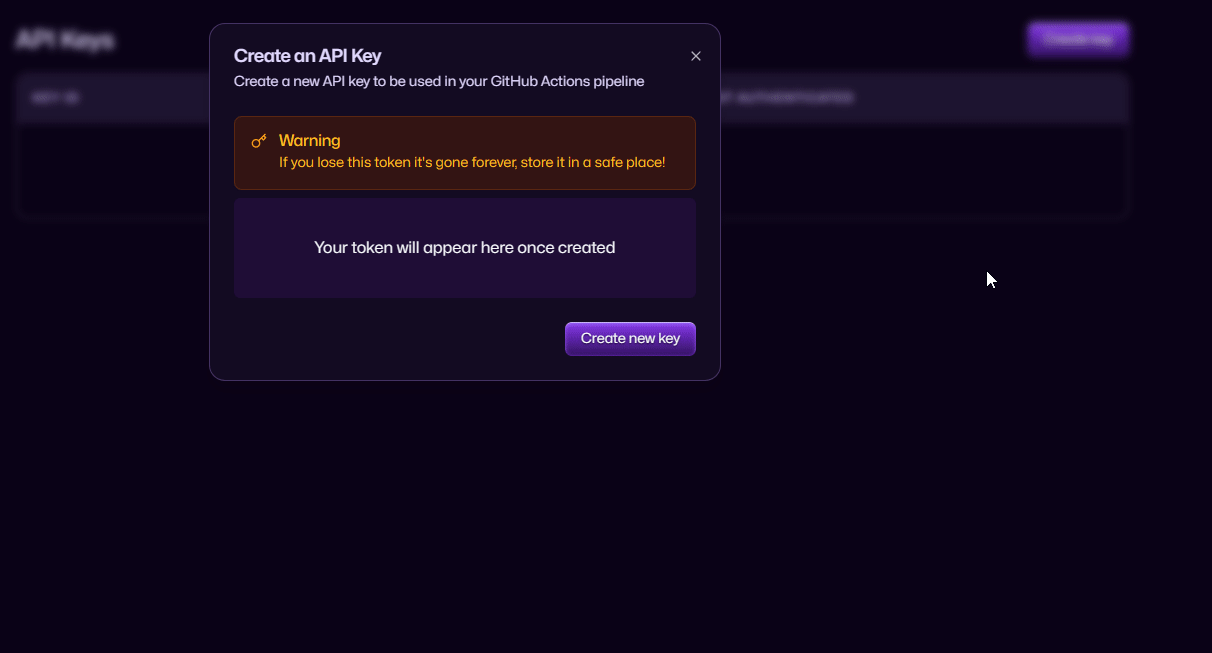

  3. Generate a new key and copy it to your clipboard. Store it as a secret in your GitHub repository.

If you're unsure about how to add secrets to a GitHub repository, see the following article:

Setup GitHub Actions Workflow​

We've provided a sample GitHub Actions configuration file below to help you get started.

You can use this as a starting point and modify it to fit your needs.

Sample GitHub Actions Workflow
name: No_Ops deployment

on:
  push:
    branches: "main"

concurrency:
  group: "no_ops"
  cancel-in-progress: true

permissions:
  id-token: write
  contents: read

env:
  NOOPS_API_TOKEN: ${{ secrets.NOOPS_API_TOKEN }}

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: getnoops/action-ops@v0.1
        with:
          tag: v0.4.0

      - id: repository
        run: |
          ops this info --format=env >> $GITHUB_OUTPUT

      - id: build
        run: |
          ops container-repository login | docker login --username ${{steps.repository.outputs.RegistryUsername}} --password-stdin ${{steps.repository.outputs.RegistryUri}}
          docker build -t ${{steps.repository.outputs.Repositories_Website_RepositoryUri}}:${GITHUB_SHA::7} .
          docker push ${{steps.repository.outputs.Repositories_Website_RepositoryUri}}:${GITHUB_SHA::7}
          echo "Image_Tag=${GITHUB_SHA::7}" >> $GITHUB_OUTPUT
      - run: |
          echo $GITHUB_OUTPUT
      - run: |
          ops this update --deploy=dev --next --vars-file .env --vars-file $GITHUB_OUTPUT
        env:
          Repositories_Website_RepositoryUri: ${{steps.repository.outputs.Repositories_Website_RepositoryUri}}
          Image_Tag: ${{steps.build.outputs.Image_Tag}}

  • The ops this command refers to the noops.yaml file in your repository.
  • The ops container-repository login command logs you into the No_Ops container repository.
  • The ops this update command updates the deployment with the new image
    • --next flag increments to the next patch version
    • --vars-file flag uses the environment variables from your .env file
Next step

See how to promote deployments to another environment.
